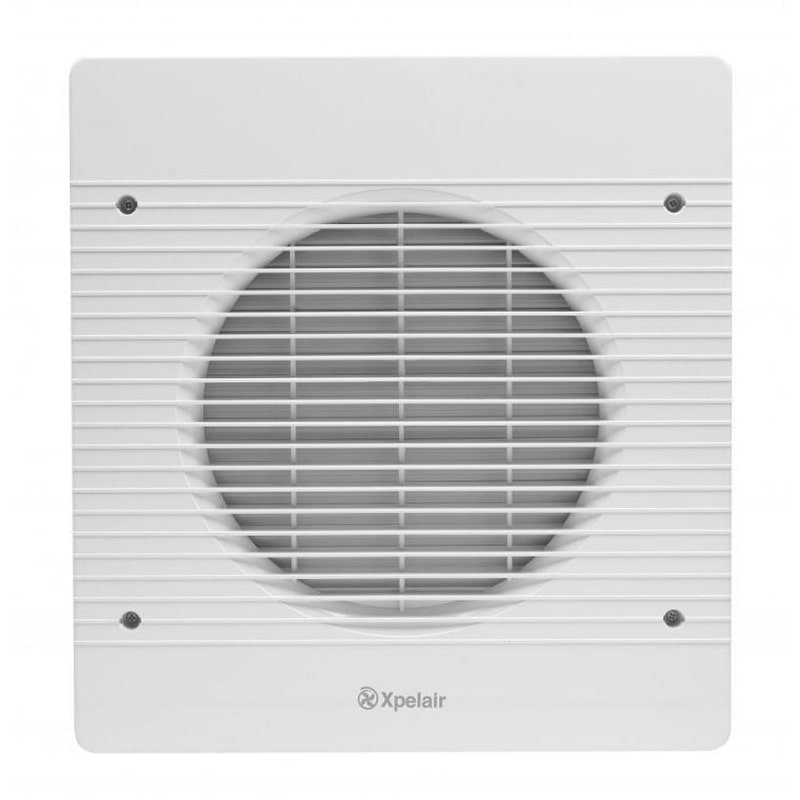

Xpelair WX12 12" Intake / Extract Wall Fan 90011AW – High Performance Commercial Ventilation

Be the first to review this product
Xpelair WX12 12" Intake / Extract Wall Fan 90011AW Built for High-Capacity Air Movement The Xpelair WX12 12" wall-mounted fan is designed for powerful intake and extraction in comm... read more
  • Brand: Xpelair
  • Model: WX12 (Part No. 90011AW)
  • Application: Commercial wall-mounted intake/extract ventilation
  • Fan Type: High-performance axial fan
  • Mounting Type: Wall-mounted only
  • Fan Size: 12 inch (300mm)
  • Airflow Volume: Up to 1100 m³/h (305 L/s)
  • Operation: 2-speed settings (with optional speed controller)
  • Motor Type: Single-phase, induction motor with pre-oiled sleeve bearings
  • Motor Power: Approx. 40W
  • Voltage/Frequency: 220–240V, 50Hz
  • Sound Pressure Level: 46 dB(A) @ 3m
  • IP Rating: IPX4 – splash-proof protection
  • Material: High-impact ABS thermoplastic construction
  • Finish: White
  • Dimensions:
  • Overall Width: 370 mm
  • Overall Height: 370 mm
  • Depth (Projection): 203 mm
  • Weight: Approx. 4.7 kg
  • Cable Entry: Rear/top/bottom options
  • Controls: Compatible with external speed controller (sold separately)
  • Approvals: CE Marked, UKCA Certified
  • Typical Use Areas: Factories, warehouses, commercial kitchens, workshops, server rooms, and retail environments
  • Warranty: Manufacturer’s standard warranty included
Product Information
Delivery Information
Reviews

Xpelair WX12 12" Intake / Extract Wall Fan 90011AW

Built for High-Capacity Air Movement

The Xpelair WX12 12" wall-mounted fan is designed for powerful intake and extraction in commercial and industrial environments. Engineered for reliability, this axial fan delivers efficient airflow where standard fans fall short—ideal for factories, warehouses, catering kitchens, and workshops. With its robust construction and high-performance motor, the WX12 ensures consistent air circulation and effective ventilation to support healthier, more productive spaces.

Designed for Durable Wall Installation

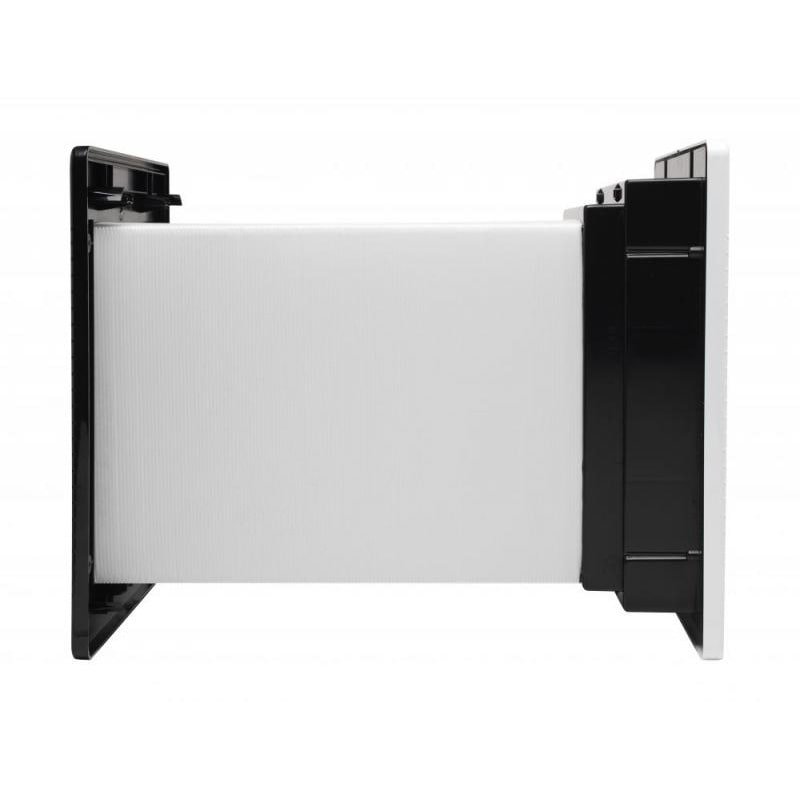

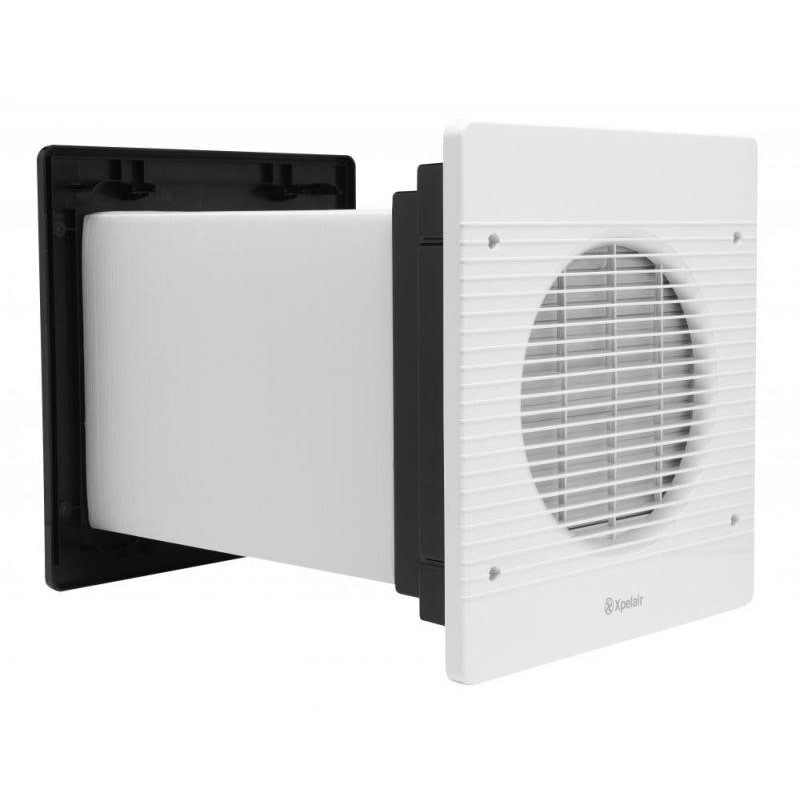

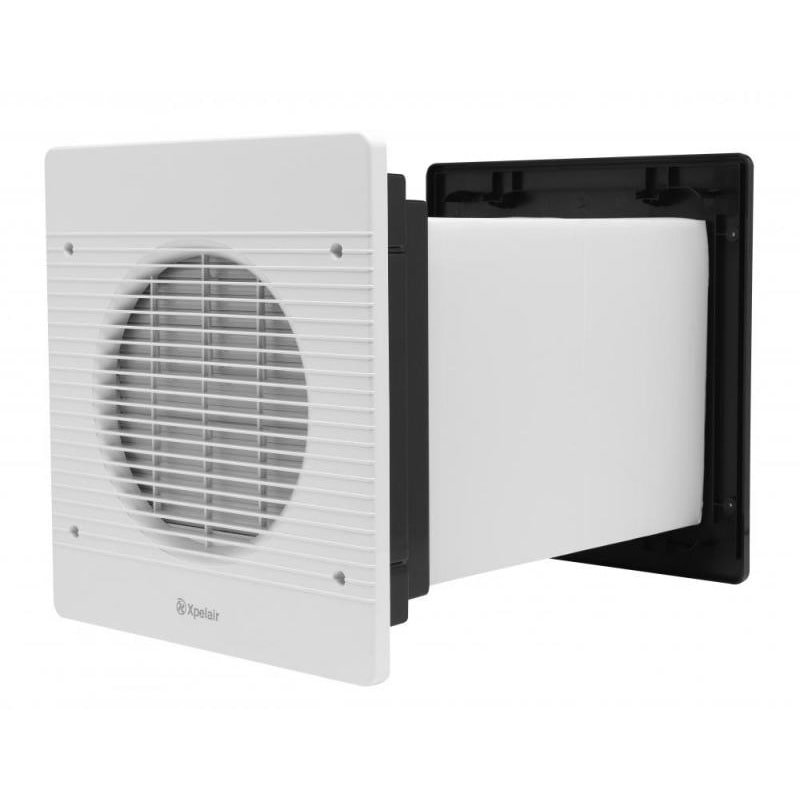

Perfect for through-the-wall applications, the WX12 fan comes with an integrated wall grille and wall liner, making installation clean and professional. The white ABS casing offers corrosion resistance and is easy to maintain, while the slim profile makes it suitable for tight spaces. Whether it's humid air, smoke, or odours, this unit works effortlessly to keep air fresh and regulated all day long.

Energy-Efficient, Quiet & Built to Last

The WX12 combines energy-efficient operation with impressive performance. It’s fitted with a high-grade motor that delivers lasting durability with low noise output, even during extended use. This commercial-grade fan is the perfect blend of practicality and power—ideal for facilities requiring consistent ventilation with minimal maintenance.
